INDEX and TRAUB Special Offer Machines
Available for immediate shipment, these machines offer a high-value upgrade to your capabilities and capacity.
Machines previously demonstrated at trade shows or in our showroom provide all of the benefits of the world’s best turning centers, but at a reduced investment level. Each of these machines has been fully certified and has a low level of operating hours in a non-production environment.
The benefits are obvious
- Reduced level of investment
- Certified INDEX quality
- Immediately available
- Shipped and serviced worldwide
- Most machines are iX4.0 ready
- German engineering excellence
Extract from our list of available machines: Production lathes, Universal lathes, Turn-mill centers, Multi-spindle automatic lathes, Sliding headstock automatic lathes.
TRAUB TNL12 - Sliding headstock automatic lathe
| Main spindle, counter spindle | 13 mm / 12,000 rpm / 4.4 kW / 8.6 Nm |
| Turning length | long 130 mm |
| Configuration options | 2 / 3 tool carriers / front working attachment / back working attachment / steady slide / extinguishing system / workpiece discharge |
| Equipment, other | Chip conveyor, coolant system, Traub TX8i-s V8 controller, iXpanel / bar loading magazine / WinFlexIPSplus, iX4.0 ready |
| Delivery option | Available at short notice |
TRAUB TNA400 - Universal turning machine
| Main spindle | 82 mm / chuck 315 mm / 4,000 rpm / 22 kW / 480 Nm | |
| Counter spindle | 65 mm / chuck 175 mm / 4,000 rpm / 12 kW / 135 Nm / or tailstock Turning length | 715 mm |
| Configuration options | Tool carrier 12 or 18 x VDI 30 / steady slide | |
| Equipment, other | Chip conveyor, coolant system, Traub TX8i-s V8 controller, iXpanel, WinFlexIPSplus, iX4.0 ready | |
| Delivery option | Available at short notice | |

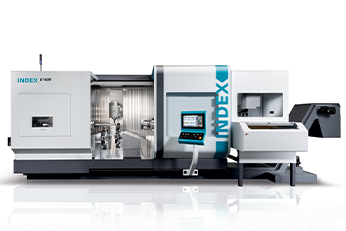

INDEX G420 - Turn-mill center
| Main spindle / counter spindle | 120 mm / chuck 400 mm / 3,000 rpm / 43 kW / 1000 Nm | |
| Turning length | 1,600 mm | |
| Configuration options | 3 tool carriers, 1 motorized milling spindle, chain-type magazine 115 HSK / tool measurement / workpiece handling shaft / conveyor belt | |
| Equipment, other | Chip conveyor, coolant system, Siemens S 840 D sl, iXpanel, iX4.0 ready, automatic short bar loader | |
| Delivery option | Available at short notice | |

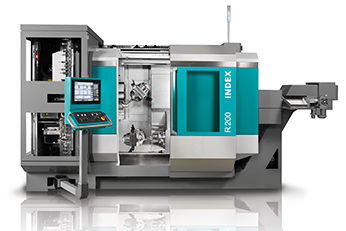

INDEX R200 - Turn-mill center
| Main spindle / counter spindle | 65 mm / chuck 175 mm / 5,000 rpm / 24 kW / 190 Nm | |
| Turning length | 390 mm | |
| Configuration options | 2 tool carriers, each with motorized milling spindle (18,000 rpm), chain-type magazine 80 HSK / 5-axes package, gantry-type removal unit | |
| Equipment, other | Chip conveyor, coolant system, Siemens S 840 D sl, iXpanel, iX4.0 ready | |
| Delivery option | Available at short notice | |

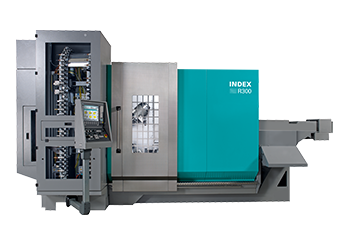

INDEX R300 - Turn-mill center
| Main spindle / counter spindle | 102 mm / chuck 315 mm / 3,500 rpm / 52 kW / 690 Nm | |
| Turning length | 610 mm | |
| Configuration options | 2 tool carriers, each with motorized milling spindle (9,000 rpm), chain-type magazine 140 HSK / 5-axes package, gantry-type removal unit | |
| Equipment, other | Chip conveyor, coolant system, Siemens S 840 D sl, iXpanel, iX4.0 ready | |
| Delivery option | Available at short notice | |

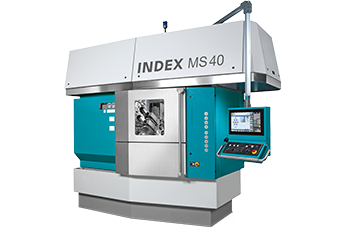

INDEX MS40-6 - Multi-spindle automatic
| Work spindles | 6 x 40 mm / 7,000 rpm / 24 kW / 57 Nm | |
| Synchronous spindle | 2 x 40 mm / 8,000 rpm / 14 kW / 22 Nm | |
| Configuration options | Tool carrier / tool slides, NC-controlled, workpiece and remnant handling | |
| Equipment, other | Chip conveyor, coolant system, Siemens S 840 D sl, iXpanel, iX4.0 ready, IEMCA bar loading magazine | |
| Delivery option | Available at short notice | |
INDEX MS40-8 - Multi-spindle automatic
| Work spindles | 6 x 40 mm / 7,000 rpm / 24 kW / 57 Nm | |
| Synchronous spindle | 2 x 40 mm / 8,000 rpm / 14 kW / 22 Nm | |
| Configuration options | Tool carrier / tool slides, NC-controlled, workpiece and remnant handling | |
| Equipment, other | Chip conveyor, coolant system, Siemens S840D sl, iXpanel, iX4.0 ready, robot | |
| Delivery option | Available at short notice | |
* Subject to prior sale and technical rights
